Ultra-precision High Speed Live Center

  • Ultra-precision High Speed Live Center
  • Ultra-precision High Speed Live Center
  • Ultra-precision High Speed Live Center

Ultra-precision High Speed Live Center

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA
    Min. Order: 1 Piece/Pieces
    Delivery Time: 30 Days
    Packaging:  carton
    Productivity: 2000-3000 pieces per month
    Brand: QFMH
    Transportation: Ocean,Land,Air
    Place of Origin: jining,china
    Supply Ability: 5000
    HS Code: 84661000
    Port: Qingdao,Shanghai,Beijing

Basic Info

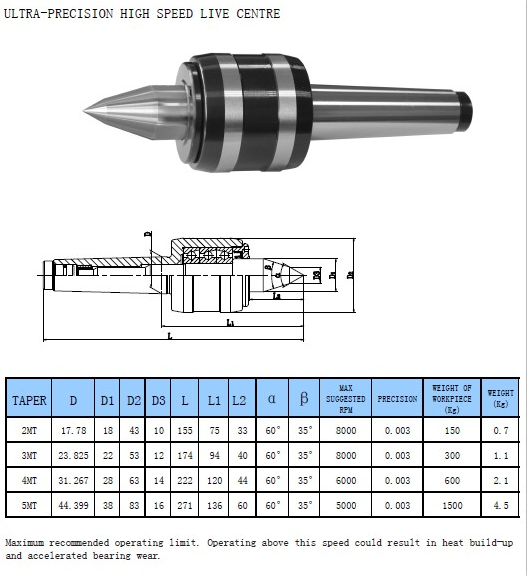

Model No.: MT2,MT3,MT4,MT5

Product Description

Ultra-precision High Speed Live Center, machine tool parts in machining. Tail with a taper shank, installed in the machine tool spindle taper or tailstock shaft hole, with its head against the workpiece cone. Can be used to face the complex parts and do not allow the central hole of the supporting parts. Ultra-precision High Speed Live Center The top is mainly composed of a thimble, a clamping device, a shell, a fixed pin, a bearing and a core shaft. Thimble is the top of the inner hole of the center hole or pipe material, on the other end can be top end is a spherical or conical parts, thimble by the clamping device fixed.


Specifications
1. Ultra-precision High Speed Live Center Center assembly bearings, Thrust Bearings
2. Ultra-precision High Speed Live Center Can be used at medium speed
3. Shaft made of alloy steel, through heat treatment
4.HRC58-60, handle super steel features and high durability.
5. The plunger uses precision-matched Angular Contact Ball Bearings and roller bearings to further improve the accuracy of the rotary tip.
6. Front with dust-proof, waterproof seal, to extend the life of the top
7. Suitable for precision machining CNC high speed heavy load.
8. Ultra-precision High Speed Live Center Accuracy: 0.003mm
9. Ultra-precision High Speed Live Center Material: Body: 40Cr HRC40-45
Sharp: GGr15 HRC58-62


Product advantages
1 High-precision waterproof and oil-resistant Morse lathe live top, the number of revolutions 3000. Precision 0.003 thrust bearing and Needle Roller Bearings for high-speed CNC lathe machining in the load, the mandrel extended to the taper shank, to maximize cutting Performance, reduce the impact of vibration, the use of alloy steel mandrel, heat treatment after the hardness HRc60o ± 2o, with high rigidity and high wear resistance, dust-proof front seal to prevent cutting fluid and dust into the bearings.
2 Ultra-precision High Speed Live Center body material: 40Cr forgings, heat treatment hardness HRC40 ~ 42
3-axis tip material: alloy tool steel, heat treatment hardness HRC58-60, with high rigidity and wear resistance.
Precision Cylindrical Roller Bearings choice
4-pin Roller Bearing bearings.

Ultra-precision High Speed Live Center
